2S Hot Start GSM GPS Tracker With 10m Positioning Accuracy For Car And Motorcycle
TBIT S7 is a GSM GPS tracker suitable both for car and motorcycle, it has used GPS chip UBLOX - 7020.
Functions:
1.ACC detection
2.Oil cut-off(relay optional)
3.Low power consumption
4.Polygon geo-fence alarm
5.Small size
Technical Parameters:
1.GPS Performance
Sensitivity: < -160dBm
Start time: cold start 45s, hot start 2s
Location accuracy: 10m
Speed accuracy:0.3m/s
2.GSM Performance
Frequency: GSM850/ 900/1800/1900MHz
3.Main Features
Overall dimension:70mm×32mm×10.5mm
Operating voltage:9V～30V(For car and motorcycle)
Maximum operating current:< 300mA(12V)
Operating current in normal mode:< 15mA(12V)
Working temperature:-20 ℃ ～ +70 ℃
Working humidity:20 ～ 95%
Accessories:
1.S7 Tracker
2.Power cable
3.Function cable
4.User manual
5.Velcro
Description:
| Dimensions | 70*32*10.5 mm |
| GSM frequency band | GSM 850/900/1800/1900 MHz |
| GPS | UBLOX - 7020 |
| Hot start | 2S |
| Cold start | 45S |
| Positioning accuracy | 10m |
| Operating temperature | -20°C to 70°C |
| Humidity | 20%–95% |
| LED indicators | SIM card indicator,GSM signal indicator,GPS indicator |

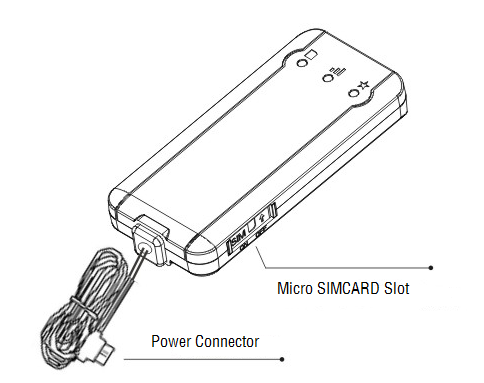

Device Appearance:
FAQ:
Q: What is the minimum order quantity?
A: No limit, standard 20pcs/ctn, better to fill up one full carton, also accept sample order. For OEM, with your logo and platform, MOQ 2000pcs.
Q: What is the guarantee of the device?
A: We supply one year warranty.
Q: What payment method do you accept?
A: T/T, L/C, Western Union ect.
Q: How will you deliver goods to me?
A: We always send sample order by Express, ship mass order by Air, Sea, Express, according to clients’choice.
Q: Sometimes location is not accuracy?
A: There are two way location, GPS outdoor, more accuracy, LBS indoor, less accuracy, since LBS bases station location, location accuracy is involved in satellite signals and network intensity.
Q: How about the lead time?
A: Standard sample always in stock, 3-5 working days for regular order less than 2000pcs, 10-15 working days for mass production order(based on different quantity.
